Park Avenue Bench and Planter

FOUR: CASTING

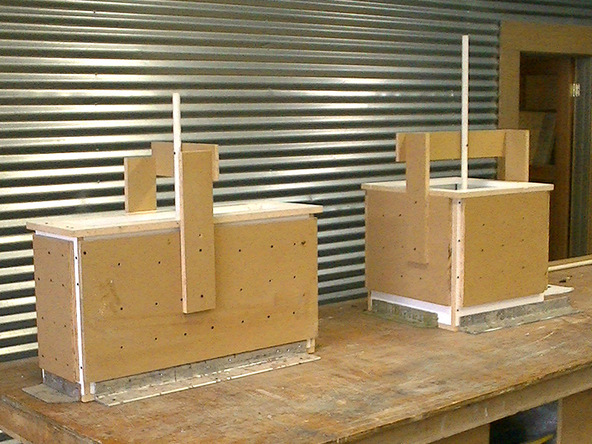

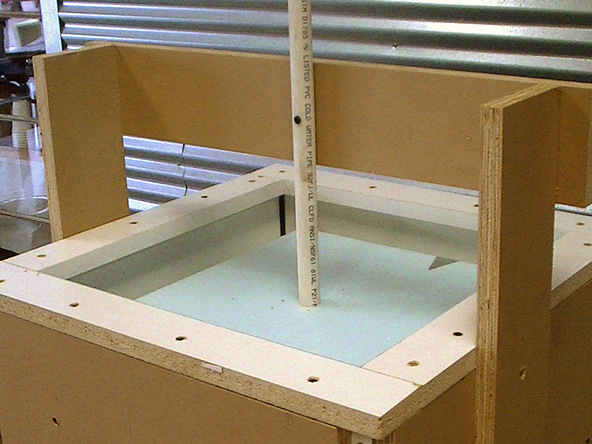

Step 1 – Prepare for Casting

  • Secure the forms to the casting table using angle iron or angle aluminum. This will help maximize the efficiency of the table vibrators and secure the forms, so they do not vibrate off the casting table/bench.

Step 2 – Pour the Concrete

  • Turn on the table vibrators.
  • Fill the form evenly so the concrete doesn’t dislodge the knockout.
  • Force the concrete down to the bottom of the form, making sure it fills in around any decorative details.

Step 3 – Cover and Cure

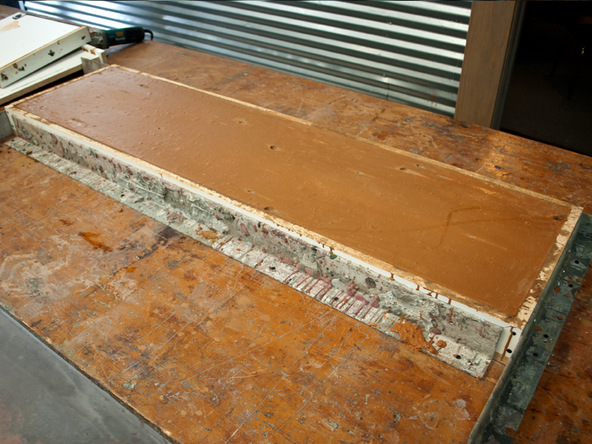

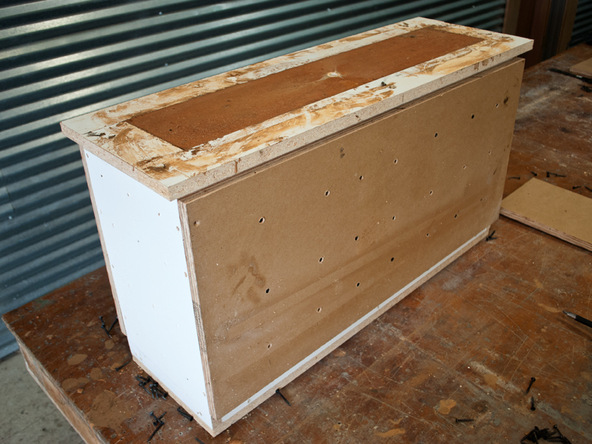

  • After the form is full, smooth the top surface.
  • Cover the form with plastic and allow to cure for 5 days.
